FEATURE

  • Flanges as per ASME B 16.5 Class 150 ( Drilling only )
  • Modular construction, high interchangeability, fast delivery
  • Versatile shaft sealing arrangement, Gland packing as a
  • standard arrangement and option to use mechanical seal
  • Process type design results in minimum downtime

OPERATING DATA

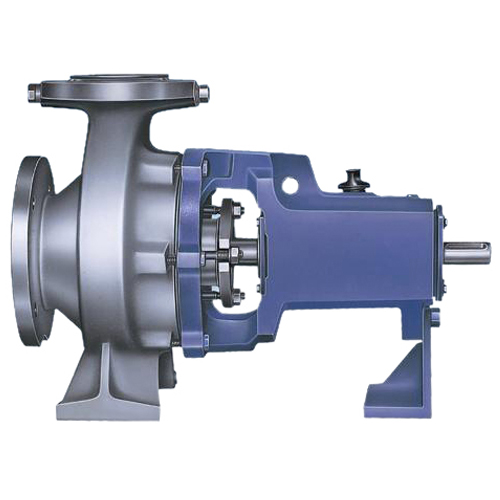

  • Design : Horizontal back pull-out
  • Pump size : DN 32 to 125 mm
  • Capacity : up to 400 m3/hr
  • Head : up to 100 m
  • Discharge Pr. : up to 24 bar
  • Temperature : -30°C to +200°C
  • Material : Cast Steel with various combinations in S. S., C. S.

APPLICATION

  • Water treatment
  • Organic & inorganic liquids
  • Reverse osmosis
  • Handling of pulp
  • Solvent extraction
  • Condensate handling
